ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

ZP15D Rotary Tablet Press Machine

15 Dies Tablet Press Machine

60KN Max Pressure Pill Press Machine

Contattici

Richieda una citazione

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Dettagli del prodotto

Modello n.:

ZP15D

Voltaggio:

380 V.

Set da tempo:

Pressione massima:

60 kN

Diametro massimo della compressa:

22 mm

Profondità di riempimento massima:

15 mm

Spessore massimo della compressa:

6 mm

Capacità produttiva:

35000 pcs/h

Velocità della torretta:

37 giri/min

Potenza motoria:

2,2 kW

Velocità del motore:

960 giri/min.

Dimensione complessiva:

615 x 890 x 1.415 mm

Peso:

700 kg

Materiale:

acciaio inossidabile

Tipo di lubrificazione:

A bagno d'olio

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prezzo

7500

Prodotti correlati

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Ottenga il migliore prezzo

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Ottenga il migliore prezzo

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Ottenga il migliore prezzo

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Ottenga il migliore prezzo

Contattici

86-21-57664559

Contatto ora

Descrizione di prodotto

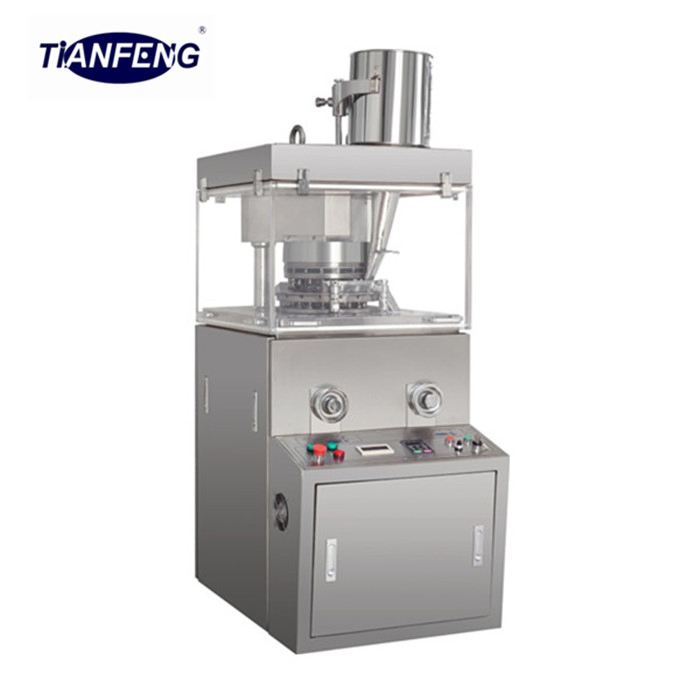

ZPW15D Rotary Tablet Press

Main Application

This single-press type, continuous automatic tablet press converts granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning and maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Specifications

Dies (sets)	15
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	22
Max. Depth of fill (mm)	15
Max. Thickness of largest tablet (mm)	6
Production capacity (pcs/h)	35,000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall dimensions (mm)	615 × 890 × 1,415
Weight (kg)	700
