ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

15 Dies Rotary Tablet Press Machine

60KN Max Pressure Tablet Press Machine

22mm Max Tablet Diameter Pill Press Machine

Contattici

Richieda una citazione

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Dettagli del prodotto

Modello n.:

ZP15D

Voltaggio:

380 V.

Set da tempo:

Pressione massima:

60 kN

Diametro massimo della compressa:

22 mm

Profondità di riempimento massima:

15 mm

Spessore massimo della compressa:

6 mm

Capacità produttiva:

35000 pcs/h

Velocità della torretta:

37 giri/min

Potenza motoria:

2,2/960kW

Dimensione complessiva:

615 x 890 x 1.415 mm

Peso:

700 kg

Peso di trasporto:

1000 kg

Materiale:

acciaio inossidabile

Tipo di lubrificazione:

A bagno d'olio

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prezzo

7500

Prodotti correlati

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Ottenga il migliore prezzo

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Ottenga il migliore prezzo

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Ottenga il migliore prezzo

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Ottenga il migliore prezzo

Contattici

86-21-57664559

Contatto ora

Descrizione di prodotto

Zp15D Big Tablet Pill Press Machine with Manufacturer Price High Quality Ce SGS Certificate

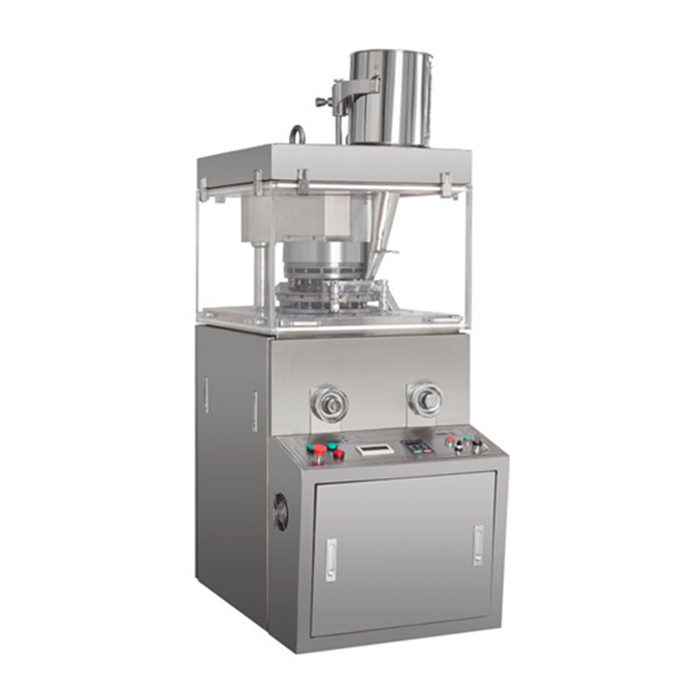

ZPW15D Rotary Tablet Press

Main Application

This single-press type, continuous automatic tablet press transforms granular raw materials into tablets. Designed primarily for pharmaceutical applications, it also serves chemical, food, electronic, plastic, and metallurgical industries.

Operating Features

Fully-enclosed stainless steel construction meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning/maintenance
Capable of producing round tablets, various geometric shapes, double-layer and annular tablets with impressed letters on both sides
Centralized control panel placement for simplified operation
Integrated overload protection system safeguards punches and apparatus
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Specifications

Dies (sets)	15
Max. Pressure (kn)	60
Max. diameter of tablet (mm)	22
Max. Depth of fill (mm)	15
Max. Thickness of largest table (mm)	6
Production capacity (pcs/h)	35000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall size (mm)	615 x 890 x 1,415
Weight (kg)	700
