ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with 380V Voltage and 17 Dies

ZPW17D Rotary Tablet Press Machine

380V Rotary Tablet Press Machine

17 Dies Tablet Press Machine

Contattici

Richieda una citazione

ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with 380V Voltage and 17 Dies

Dettagli del prodotto

Modello n.:

zpw17D

Voltaggio:

380 V.

Set da tempo:

Pressione massima:

60 kN

Diametro massimo della compressa:

20 mm

Profondità di riempimento massima:

15 mm

Spessore massimo della compressa:

6 mm

Capacità produttiva:

40000 pcs/h

Velocità della torretta:

37 giri/min

Potenza motoria:

2,2/960kW

Dimensione complessiva:

615 x 890 x 1.415 mm

Peso:

700 kg

Computelizzato:

Non computerizzati

Pacchetto di trasporto:

Cassa in legno

Capacità produttiva:

10 set/mese

Termini di trasporto & di pagamento

Quantità di ordine minimo

Prodotti correlati

ZP15D Rotary Tablet Press Machine with 15 Dies 60kn Max Pressure and 22mm Max Diameter for Candy and Pharmaceutical Industries

Ottenga il migliore prezzo

ZP15D Model Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for Pharmaceutical and Chemical Industries

Ottenga il migliore prezzo

ZP15D Rotary Tablet Press Machine with 15 Dies 60KN Max Pressure and 22mm Max Tablet Diameter

Ottenga il migliore prezzo

ZP15D Rotary Tablet Press Machine with 15 Dies and 60KN Max Pressure for High Capacity Tablet Production

Ottenga il migliore prezzo

Contattici

86-21-57664559

Contatto ora

Descrizione di prodotto

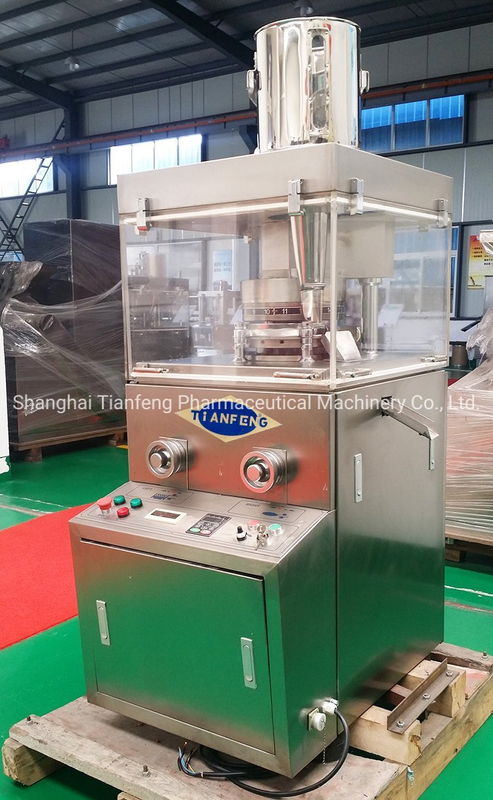

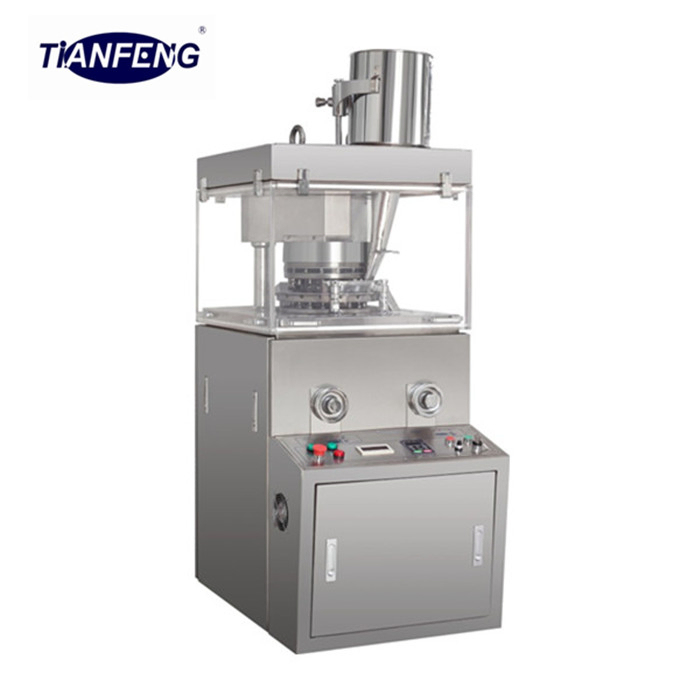

ZPW17D Rotary Tablet Press Machine for Big Tablet Pill Making with Factory Price CE Certificate

Main Application

This single-press type, continuous automatic tablet press transforms granular raw materials into tablets. Primarily used in the pharmaceutical industry, it also serves chemical, food, electronic, plastic, and metallurgical applications.

Operating Principle

Fully-enclosed stainless steel exterior meets G.M.P requirements
Transparent windows allow clear observation of press conditions and facilitate easy cleaning/maintenance
Capable of producing round tablets, various geometric shapes, double-layer tablets, annular tablets, and tablets with impressed letters on both sides
Centralized control panel and devices on one side for simplified operation
Integrated overload protection system safeguards punches and apparatus from damage
Fully-enclosed oil-immersed worm gear drive ensures long service life and prevents cross contamination

Technical Parameters

Parameter	Value
Dies (sets)	17
Max. Pressure (kN)	60
Max. diameter of tablet (mm)	20
Max. Depth of fill (mm)	15
Max. Thickness of largest table (mm)	6
Production capacity (pcs/h)	40000
Turret speed (r/min)	37
Motor power (kW)	2.2/960, 380V/50
Overall size (mm)	615 x 890 x 1,415
Weight (kg)	700
